What is Dyne Surface Testing?

Dyne Surface Testing Explained

Dyne testing is a quick and straightforward method used to measure the surface tension or surface energy of a material, often a polymer or plastic. A material's surface energy is crucial for determining how well it will bond with other materials, such as adhesives, inks, or coatings.

Think of it like this: water on a freshly waxed car beads up and rolls off. This is because the wax has very low surface energy, and the water (with its high surface tension) prefers to stick to itself rather than the car's surface. On an unwaxed car, the water spreads out, indicating a higher surface energy on the car's surface, which allows for better wetting.

How Does It Work?

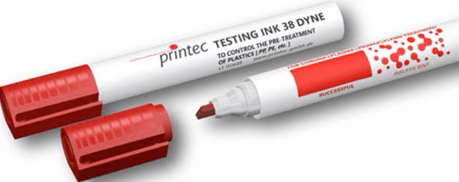

Dyne testing uses special fluids or pens called dyne pens that contain a mixture of solvents with a known surface tension value, measured in dynes/cm (or mN/m, which is the SI unit and numerically equivalent).

To perform a test, you simply draw a line on the material with a dyne pen .

If the fluid in the test pen wets the surface (spreads out into a uniform film for at least 2 seconds), the surface energy of the material is equal to or greater than the dyne level of the pen.

If the fluid beads up or pulls back, the surface energy is lower than the dyne level of the pen.

By using a series of pens with increasing dyne values, you can quickly find the range of a material's surface energy. For example, if a 40 dyne pen wets the surface but a 42 dyne pen beads up, the surface energy of the material is somewhere between 40 and 42 dynes/cm.

Why is it Important?

Dyne testing is a vital quality control tool in many industries, including printing, packaging, and manufacturing. It helps ensure that surfaces are properly prepared before printing, bonding, or coating processes. Without sufficient surface energy, inks won't adhere properly, labels will peel off, and coatings will fail.

For example, a company printing on plastic bags can use dyne testing to verify that the plastic's surface has been properly treated (e.g., with corona treatment or plasma) to a high enough dyne level to ensure the ink sticks permanently. This simple test prevents costly production errors and product failures.
